Product Overview & Specifications

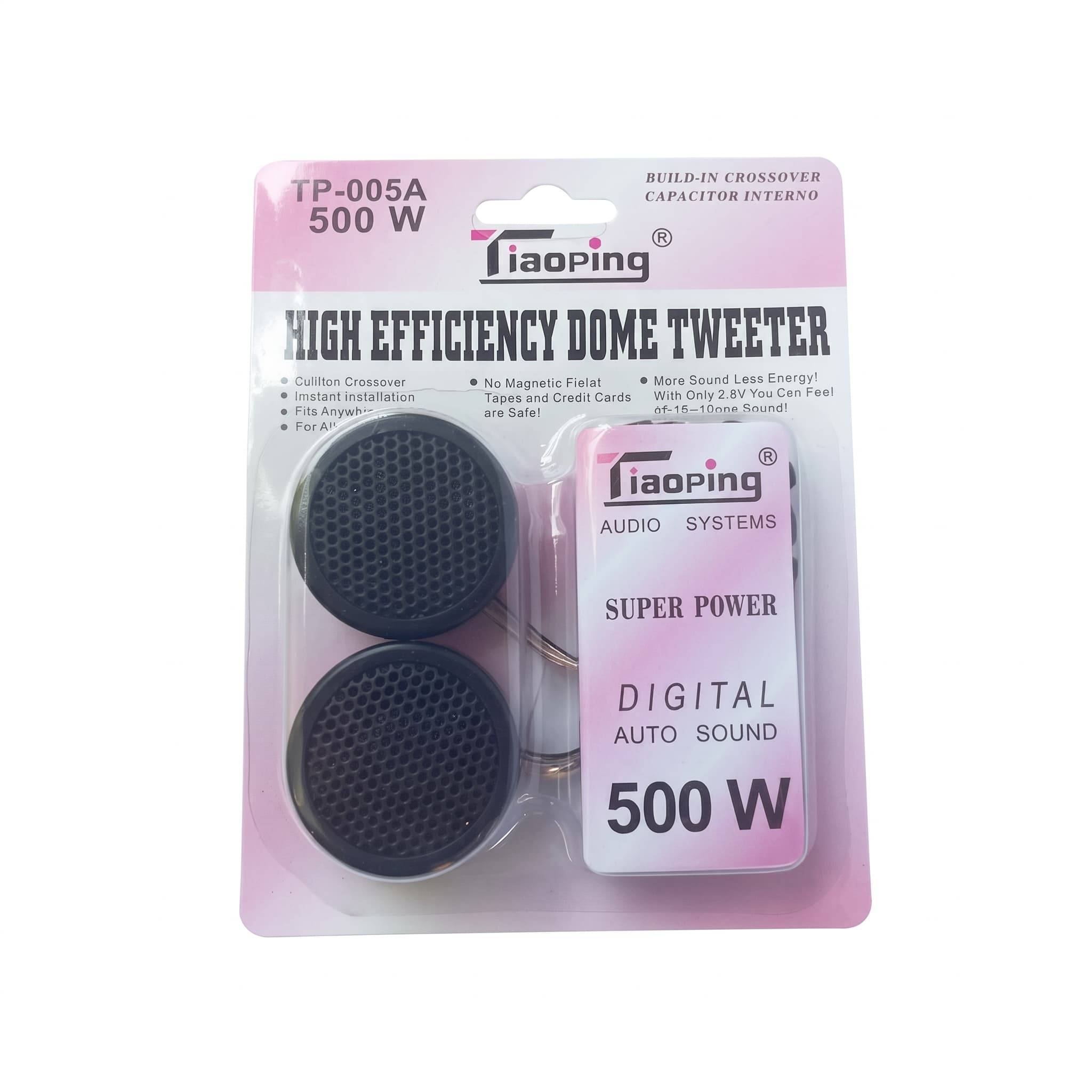

Tiaoping TP-005A High Efficiency Dome Tweeters - 500W
The Tiaoping TP-005A is a premium solution for car audio enthusiasts looking to enhance their vehicle's soundstage. These high-efficiency dome tweeters provide sharp, crisp high-frequency reproduction, effectively filling the "audio gap" left by factory door speakers.
Key Features
High-Fidelity Sound: Engineered for "Digital Auto Sound," providing crystal-clear treble and detailed highs.
Super Power Output: 500W Peak Power handling for high-performance audio systems.
High Sensitivity: Optimized to produce loud, clear sound (97dB) with minimal power input (2.8V).
Electronic Safety: Designed with no external magnetic field; safe for installation near dashboards, LCD screens, and sensitive vehicle sensors.
Versatile Mounting: Ultra-compact design allows for surface mounting on dashboards, A-pillars, or door sails without bulky modifications.
| Feature | Detail |
| Model | TP-005A |
| Max Power Handling | 500W |
| Sensitivity | 97dB (1W/1m) |
| Voltage Requirement | 2.8V |
| Sound Type | High Efficiency Dome |
| Application | Universal Car Audio |
| Origin | Made in China |

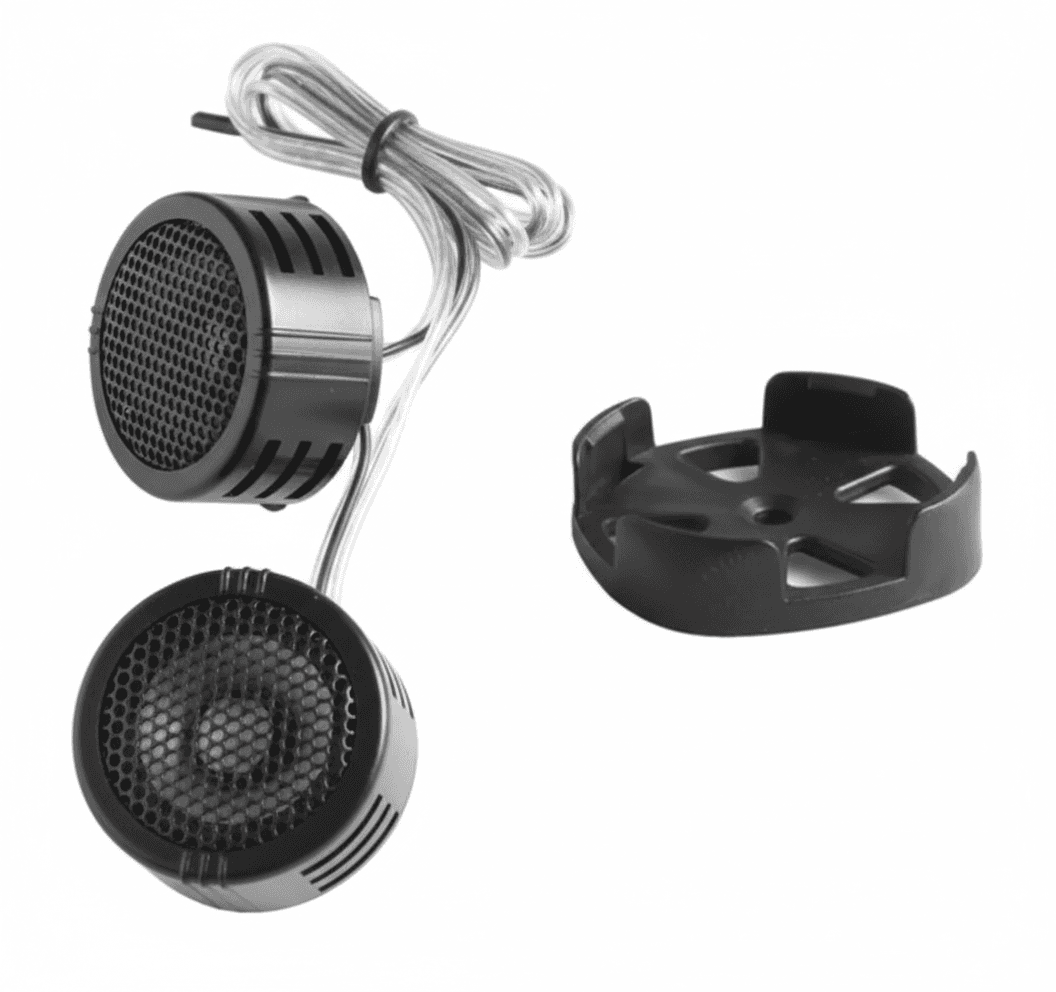

What's Included
1 Pair (2 Units) of TP-005A High-Efficiency Dome Tweeters.
Mounting Hardware: Includes screws for secure installation.
Adhesive Pads: For quick surface mounting without drilling.
Integrated Wiring: Pre-attached positive (Gold) and negative (Silver) leads.

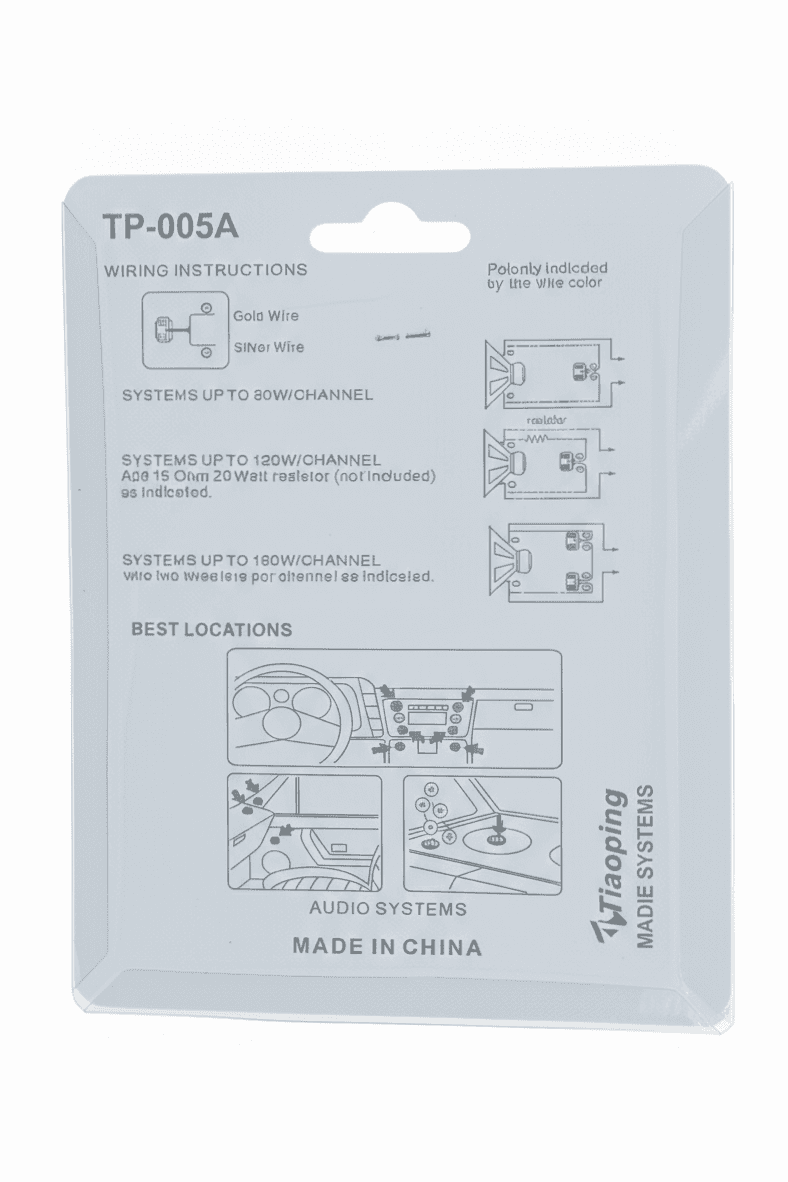

Installation & Wiring Guide
To ensure the longevity of your tweeters and optimal sound quality, please follow these wiring guidelines based on your system power:
1. Identify Polarity
Gold Wire: Positive (+)
Silver Wire: Negative (-)
2. Power Configuration Table
| Amp Power (Per Channel) | Connection Requirement |
| Up to 80W | Direct connection (requires external capacitor). |
| Up to 120W | Install a 15 Ohm 20W resistor (not included) in series. |
| Up to 160W | Wire two tweeters in series per channel as per the diagram. |
3. Recommended Placement
Dashboard: Reflects sound off the windshield for a wider soundstage.
A-Pillars: Provides the most direct "ear-level" high-frequency response.
Upper Door Panels: Offers a balanced sound image for front passengers.
Professional Usage Note
CROSSOVER PROTECTION REQUIRED: These tweeters do not include internal capacitors. You must use an external crossover or a bipolar capacitor (e.g., 3.3μF or 4.7μF) in series with the positive wire to block low-frequency bass. Connecting these directly to a full-range signal without a capacitor will result in immediate damage to the voice coil.
Product ID: AS-3001
