Universal Backup Camera

While exact specs vary by the specific "mod" or version, these cameras generally feature:

Resolution: 720p (AHD) or 480-600 TV Lines (CVBS).

View Angle: 140° to 170° wide-angle "fisheye" lens.

Waterproof Rating: IP67 or IP68 (Dust-tight and protected against long-term immersion).

Night Vision: Minimum illumination of 0.1 Lux, often with infrared LEDs or "Starlight" low-light sensors.

Power Supply: DC 12V (Standard vehicle power).

Operating Temperature: -20°C to +70°C.

Installation Instructions

Most universal backup cameras follow a standard 4-step wiring process:

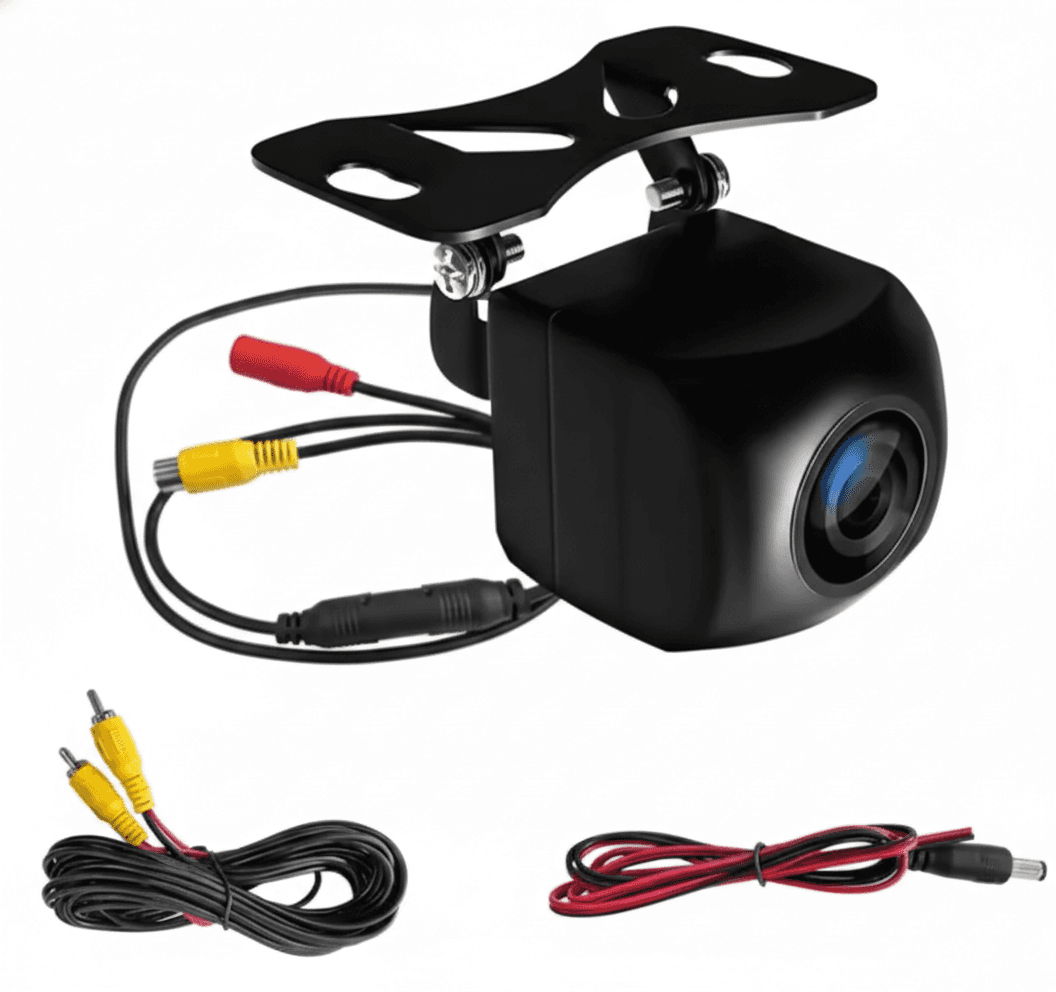

1. Mounting: Secure the camera near the rear license plate using the provided bracket or adhesive.

2. Powering (Reverse Light):

Locate the Positive (+) and Negative (-) wires of your car's reverse light.

Tap the camera's power wires into these. This ensures the camera only turns on when you shift into Reverse.

3. Routing the Video Cable:

Run the long RCA video cable from the trunk to your dashboard monitor (usually under the floor mats or door sill panels).

If the cable has a short red trigger wire, connect it to the "Reverse Trigger" wire on your head unit/monitor.

4. Connecting to Display: Plug the yellow RCA jack into the "Camera In" port on your monitor.

User Guide & Maintenance

Automatic Activation: The camera will automatically display on your screen when the vehicle is in reverse.

Parking Guidelines: If your camera has built-in lines, ensure it is mounted level. Some models allow you to cut a small "loop" wire on the camera harness to disable these lines.

Cleaning: Use a soft microfiber cloth to clean the lens. Avoid high-pressure power washers directly on the lens, as this can eventually compromise the seals.

Troubleshooting:

No Image: Check the reverse light connection and the fuse on your head unit.

Flickering: Ensure the Ground (-) wire is attached to clean, unpainted metal.

Product ID: ES-2001
