Kenwood CMOS-130 Universal Rear View Camera - High-Sensitivity Compact Reversing Aid
Includes all applicable Sri Lankan taxes. Islandwide delivery calculated at checkout.
Product Overview & Specifications

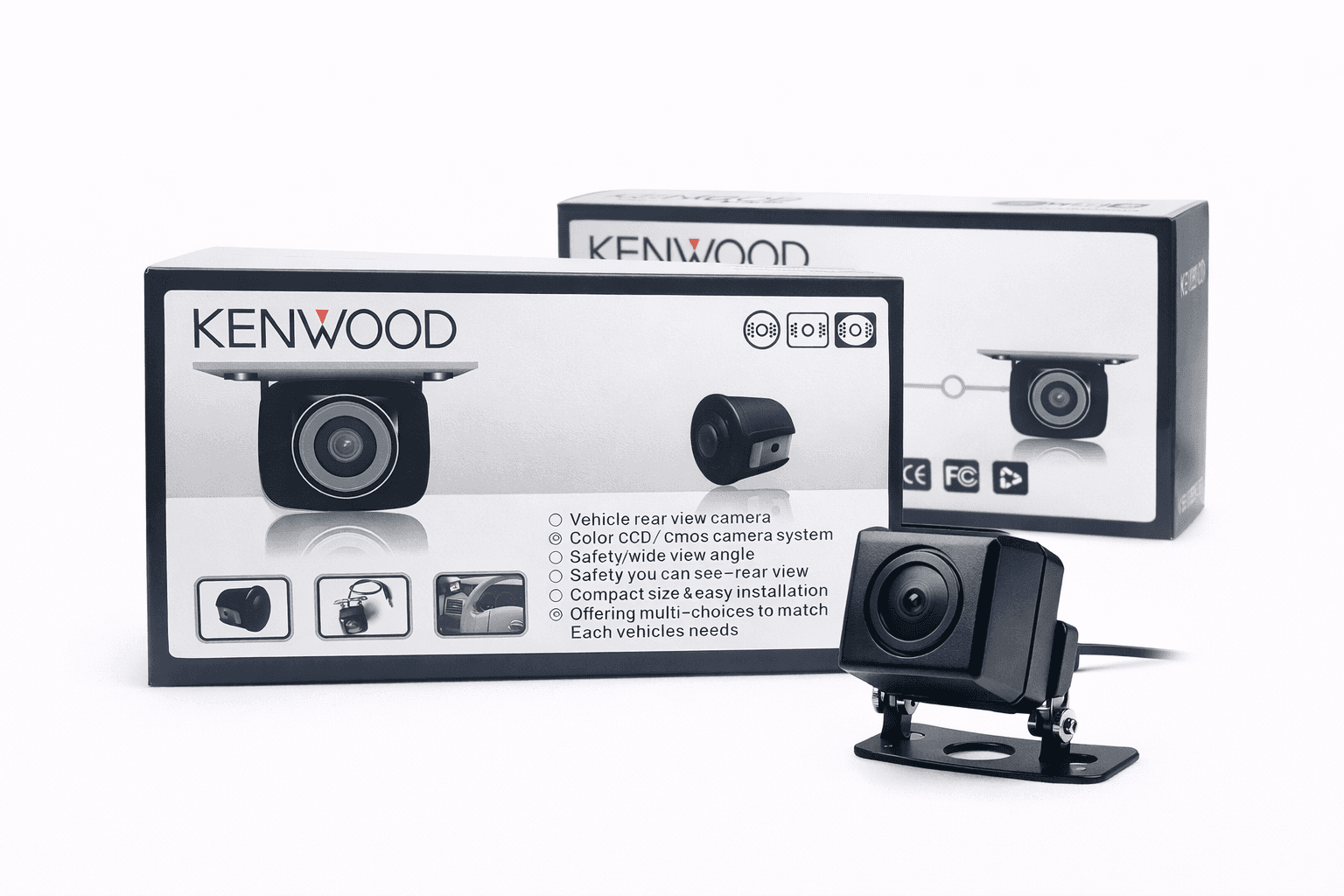

Kenwood CMOS-130 Universal Rear View Camera - High-Sensitivity Compact Reversing Aid
Product Description
Enhance your driving safety and eliminate blind spots with the Kenwood Universal Rear View Camera. Designed for drivers who demand clarity and reliability, this compact camera delivers a crystal-clear, wide-angle mirror image of what's behind your vehicle. Whether you're navigating tight city parking or reversing a large SUV, the high-sensitivity CMOS sensor ensures excellent visibility even in low-light environments like underground garages or rainy nights. Its discreet "cube" design allows for a near-factory look on any vehicle, making it the perfect upgrade for any aftermarket head unit with an RCA video input.
Key Features
Superior Low-Light Performance: Equipped with a high-sensitivity 1/4" color CMOS sensor that captures clear images in as little as 0.9 lux.
Ultra-Wide Viewing Angle: A 129° horizontal and 104° vertical field of view provides a massive perspective of your surroundings.
IP67 Waterproof Rating: Built to withstand the elements, from heavy rain to dust and car washes.
Flexible Mounting: Includes a multi-angled bracket that can be adjusted for the perfect viewing height on your bumper or trunk lid.
Universal Compatibility: Standard RCA (NTSC) video output works with almost any car stereo or standalone monitor.
Installation Instructions
Most universal backup cameras follow a standard 4-step wiring process:
1. Mounting: Secure the camera near the rear license plate using the provided bracket or adhesive.
2. Powering (Reverse Light):
Locate the Positive (+) and Negative (-) wires of your car's reverse light.
Tap the camera's power wires into these. This ensures the camera only turns on when you shift into Reverse.
3. Routing the Video Cable:
Run the long RCA video cable from the trunk to your dashboard monitor (usually under the floor mats or door sill panels).
If the cable has a short red trigger wire, connect it to the "Reverse Trigger" wire on your head unit/monitor.
4. Connecting to Display: Plug the yellow RCA jack into the "Camera In" port on your monitor.
User Guide & Maintenance
Automatic Activation: The camera will automatically display on your screen when the vehicle is in reverse.
Parking Guidelines: If your camera has built-in lines, ensure it is mounted level. Some models allow you to cut a small "loop" wire on the camera harness to disable these lines.
Cleaning: Use a soft microfiber cloth to clean the lens. Avoid high-pressure power washers directly on the lens, as this can eventually compromise the seals.
Troubleshooting:
No Image: Check the reverse light connection and the fuse on your head unit.
Flickering: Ensure the Ground (-) wire is attached to clean, unpainted metal.
Product ID: ES-2004
